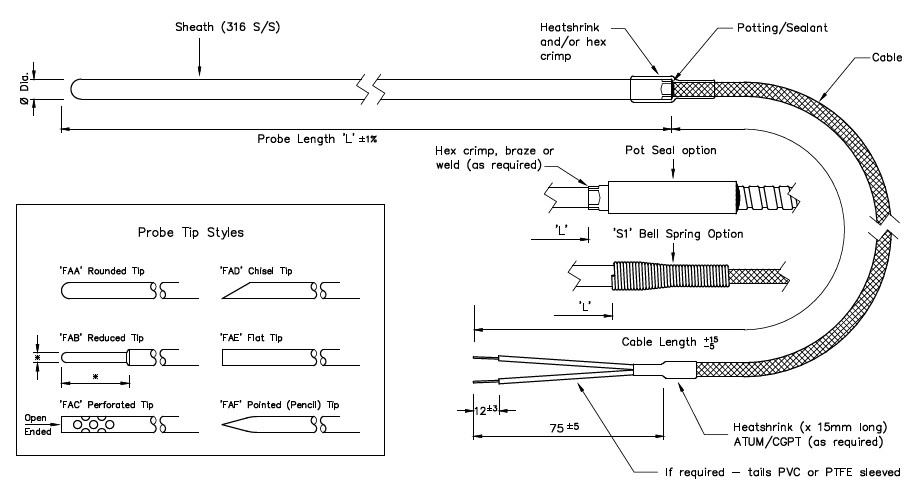

Fabricated Thermocouple (FA STYLE)
Customer/Company Name
Country
Email
Telephone
Tip Style
Please Select
A: Rounded Tip
B: Reduced Tip
C: Perforated Tip
D: Chisel Tip
E: Flat Tip
F: Pointed Tip
Junction Type
Please Select
G:Grounded
I:Insulated
E: Exposed
No.of Elements
Please Select
S: Single
D: Duplex
T: Triplex
Thermocouple Type
Please Select
J: Iron/Con
K: NiCr/NiAl
T: Cu/Con
N: NiCrSil/Nisil
E: Cr/Con
Probe Diameter
Please Select
1.5: 1.5mm
1.6: 1.58mm 1/16"
1.63: 1.63mm 16swg
2.0: 2.03mm
2.1: 2.1mm
3.0: 3.0mm
3.2: 3.2mm 1/8"
3.3: 3.3mm 10g
4.0: 4.0mm 5/32"
4.5: 4.5mm
4.76: 4.76mm 3/16"
5.0: 5.0mm
6.0: 6.0mm
6.35: 6.35mm 1/4"
8.0: 8.0mm
9.5: 9.52mm 3/8"
10.0: 10.0mm
Probe Length (mm)
Pot Seal Type
Please Select
P1: Plain 200°C
P2: Plain 450°C
P3: 1/8"BSP 200°C
P4: 1/8"BSP 450°C
P5: M8x1 200°C
P6: M8x1 450°C
NP: No Pot
Cable Length (m)
Cable Type
Please Select
C1: PVC F/P
C2: PTFE F/P
C3: F/Glass F/P
C4: F/Glass +st/st overbraid
C5: PTFE TTP
C6: PU coiled (1.5mts extended)
C7: PFA F/P
C8: PFA TTP
C9: Silicone Rubber
C10: PVC MYLAR
C20: PTFE F/P + SSOB
C50: 1/0.2mm PTFE TTP
C51: 1/0.3mm PTFE TTP
C52: 1/0.5mm PTFE TTP
C70: PFA F/P + SSOB
C80: 1/0.2mm PFA TTP
C81: 1/0.3mm PFA TTP
C82: 1/0.5mm PFA TTP
Termination
Please Select
T: Tails (75mm)
ST: T/C Spades
MP: Mini Plug
MS: Mini Socket
MPD: Mini Dual Plug
MSD: Mini Dual Socket
MCP: Mini Ceramic Plug
MCS: Mini Ceramic Socket
SP: Standard Plug
SS: Standard Socket
SPD: Standard Dual Plug
SSD: Standard Dual Socket
SCP: Standard Ceramic Plug
SCS: Standard Ceramic Socket
Colour Code
Please Select
I: IEC
B: BS
A: ANSI
J: JIS
Quantity Required
Additional Comments
